Package of 5!

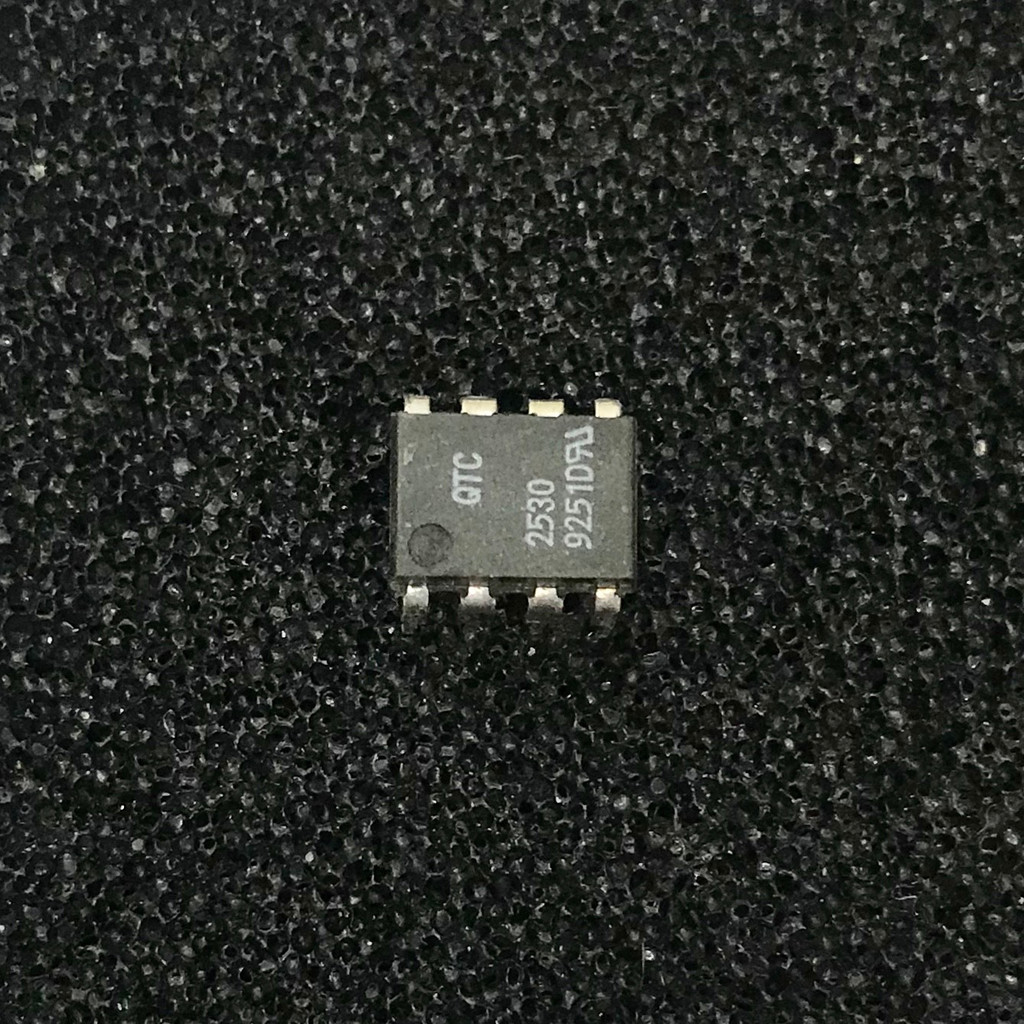

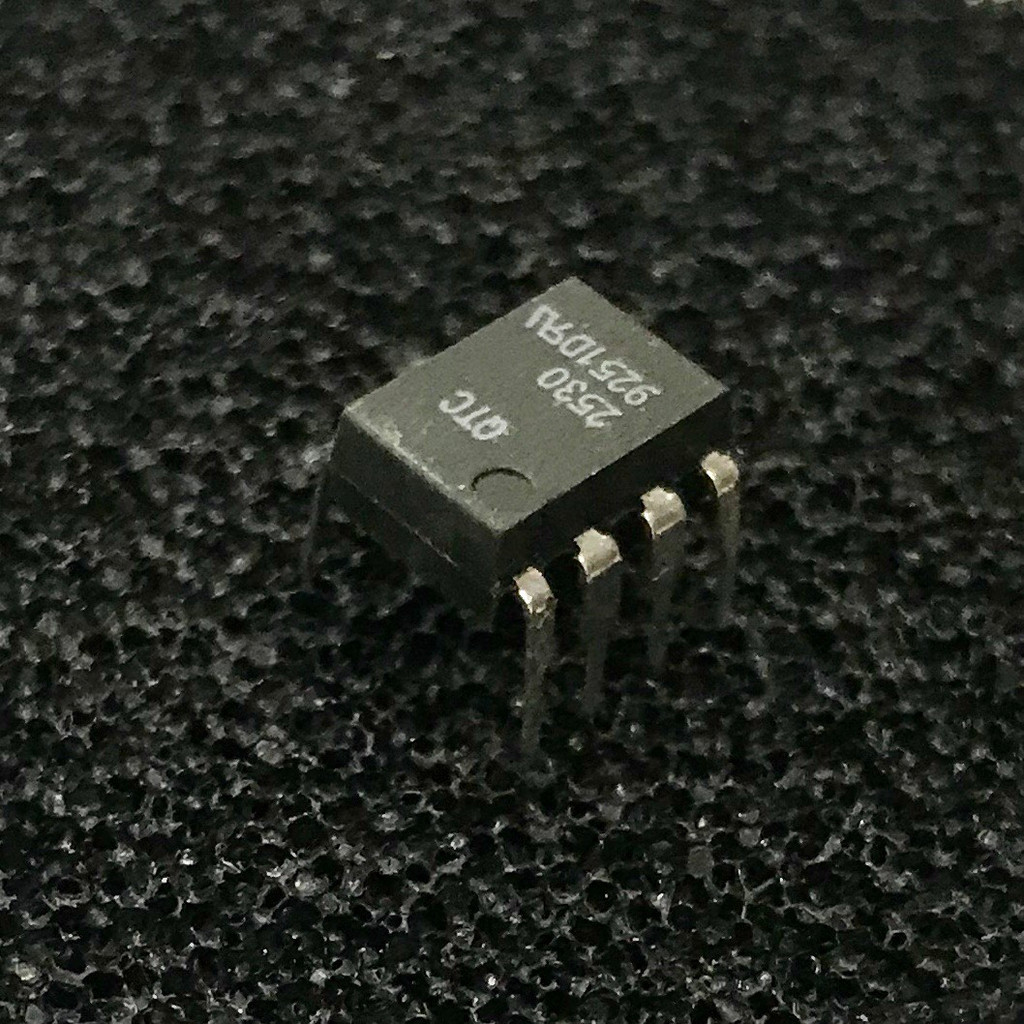

New old stock (NOS), unused, genuine part: HCPL-2530 High Speed 1 Mb/s Dual-Channel Transistor Optocouplers, PDIP-8 package. Marked “QTC 2530”. Original Quality Technologies factory stock

Manufacturer: Quality Technologies (QTC)
Manufacturer Part Number: HCPL-2530
Product Category: Transistor Output Optocouplers
Package: PDIP-8, Plastic
Output Type: Phototransistor
Number of Channel: 2 Channel
Current Transfer Ratio (CTR): 18% (If=16 mA)
Emitter Input Forward Current: 25 mA (each channel)
Emitter Input Forward Voltage: 1.45 V (Typ), 1.8 V (Max)
Emitter Input Reverse Breakdown Voltage: 5 V
Detector Average Output Current: 8 mA (each channel)
Detector Peak Output Current: 16 mA (each channel)
Power Dissipation: Emitter=45mW (each channel); Detector=35mW (each channel)
RoHS: NO
Packaging: Anti-Static (shipped in a cut-to-size IC tube)

Description
The HCPL-2530 optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor. A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototransistor optocouplers by reducing the base-collector capacitance of the input transistor. An internal noise shield provides superior common mode rejection of 10kV/µs. An improved package allows superior insulation permitting a 480 V working voltage compared to industry standard of 220 V.

Features
High speed-1 MBit/s
Superior CMR-10 kV/µs
Dual-Channel (HCPL-2530)
Double working voltage-480V RMS
CTR guaranteed 0-70°C
U.L. recognized (File # E90700)

Applications
Line receivers
Pulse transformer replacement
Output interface to CMOS-LSTTL-TTL
Wide bandwidth analog coupling
