Package of 10!

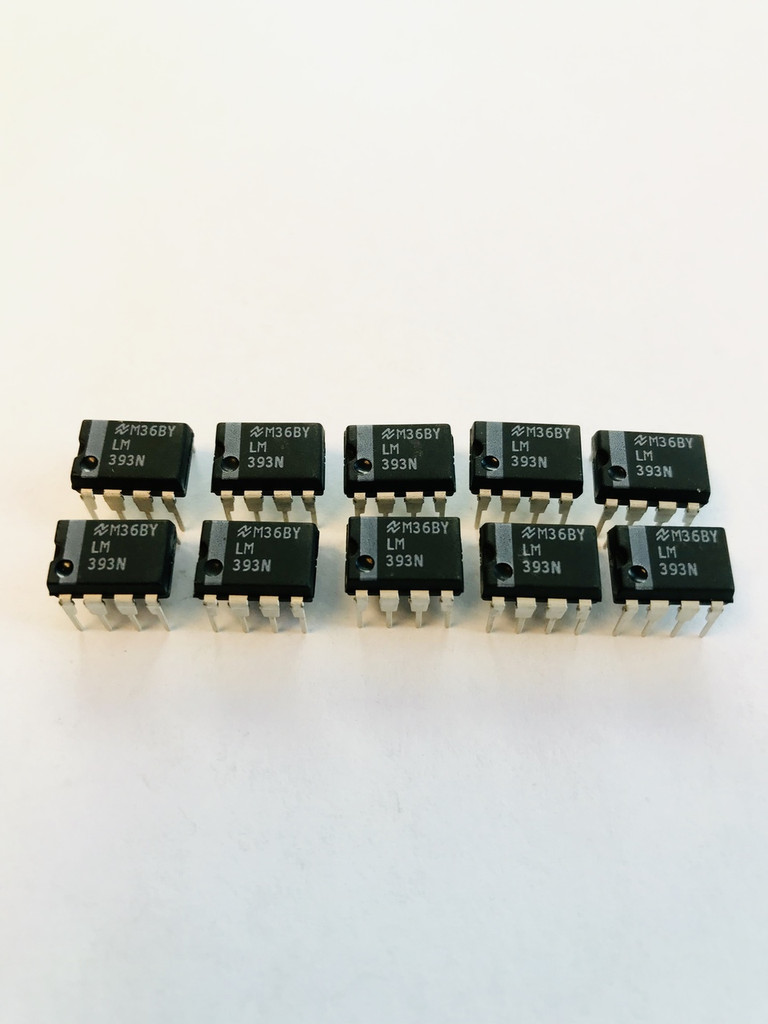

These are new old stock (NOS), unused, genuine original National Semiconductor LM393N analog dual comparators from our warehouse. Marked LM393N.

Manufacturer: National Semiconductor
Manufacturer Part Number: LM393N
Product Category: Analog Comparators
Package / Case: PDIP-8, Plastic
Mounting Style: Through Hole
Number of Channels: 2
RoHS: NO

General Description
The LM393 consists of two independent precision voltage comparators with an offset voltage specification as low as 2.0 mV max for two comparators which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. These comparators also have a unique characteristic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage.
Application areas include limit comparators, simple analog to digital converters; pulse, squarewave and time delay generators; wide range VCO; MOS clock timers; multivibrators and high voltage digital logic gates. The LM393 was designed to directly interface with TTL and CMOS. When operated from both plus and minus power supplies, the LM393 will directly interface with MOS logic where their low power drain is a distinct advantage over standard comparators.

Advantages
High precision comparators
Reduced VOS drift over temperature
Eliminates need for dual supplies
Allows sensing near ground
Compatible with all forms of logic
Power drain suitable for battery operation

Features
Wide supply
— Voltage range: 2.0V to 36V
— Single or dual supplies: ±1.0V to ±18V
Very low supply current drain (0.4 mA) — independent of supply voltage
Low input biasing current: 25 nA
Low input offset current: ±5 nA
