Package of 10

NXP 74HC151PW 8 Input multiplexer.

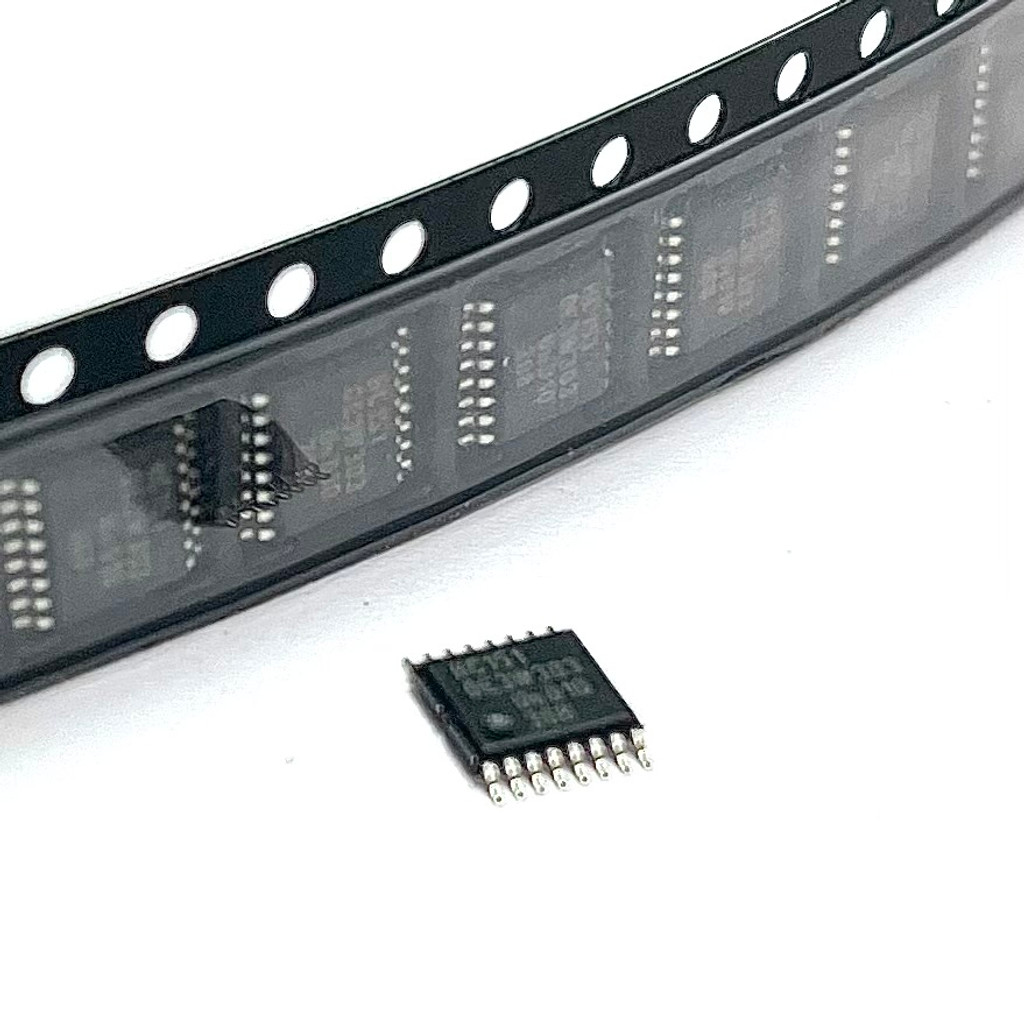

Surface Mount (SMD/SMT) TSSOP16 package. On cut tape.

The 74HC151 is an 8-bit multiplexer with eight binary inputs (I0 to I7), three select inputs (S0 to S2) and an enable input (E). One of the eight binary inputs is selected by the select inputs and routed to the complementary outputs (Y and Y). A HIGH on E forces the output Y LOW and output Y HIGH. Inputs also include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Manufacturer: NXP
Manufacturer Part Number: 74HC151PW
74 Series Part: 74HC151
Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
Logic Family: HC
Number of Input Lines: 8 Input
Number of Output Lines: 1 Output
Supply Voltage - Min: 2 V
Supply Voltage - Max: 6 V
Package / Case: TSSOP-16
RoHS: YES
Packaging: Anti-Static; Cut Tape.
