Single Item, Package of 1.

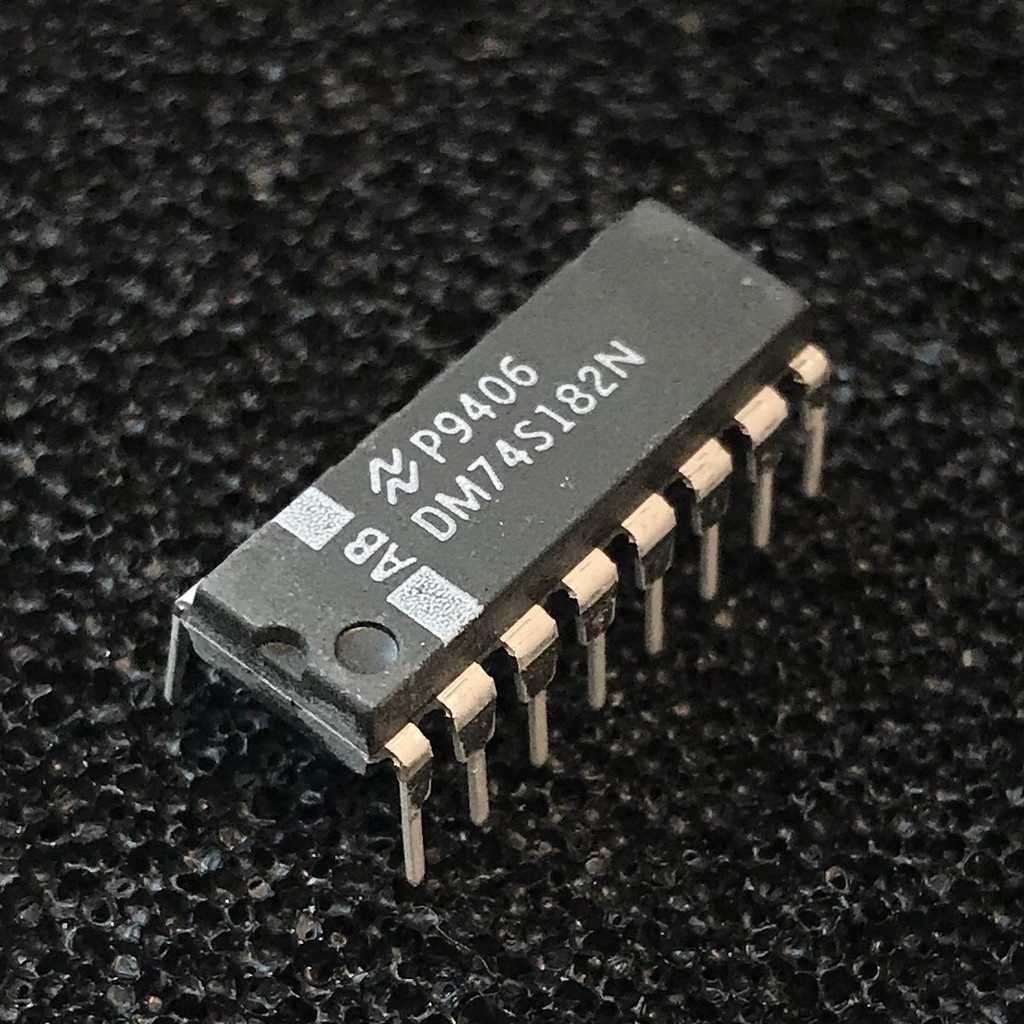

New old stock (NOS), unused, genuine part: National DM74S182N Look-Ahead Carry Generator, PDIP-16.

Manufacturer: National Semiconductor
Manufacturer Part Number: DM74S182N
74 Series Part: 74S182
Product Category: Logic ICs, Arithmetic Logic Unit - ALU
Product: Look-Ahead Carry Generator
Logic Family: S
Supply Voltage - Min: 4.75 V
Supply Voltage - Max: 5.25 V
Package / Case: PDIP-16, Plastic
RoHS: NO
Packaging: Anti-Static

General Description
These circuits are high-speed, look-ahead carry generators, capable of anticipating a carry across four binary adders or groups of adders. They are cascadable to perform full lookahead across n-bit adders. Carry, generate-carry, and propagate-carry functions are provided as shown in the pin designation table.

When used in conjunction with the 181 arithmetic logic unit, these generators provide high-speed carry look-ahead capability for any word length. Each S182 generates the lookahead (anticipated carry) across a group of four ALU’s and, in addition, other carry look-ahead circuits may be employed to anticipate carry across sections of four look-ahead packages up to n-bits. The method of cascading circuits to perform multi-level look-ahead is illustrated under typical application data.

Carry input and output of the ALU’s are in their true form, and the carry propagate (P) and carry generate (G) are in negated form; therefore, the carry functions (inputs, outputs, generate, and propagate) of the look-ahead generators are implemented in the compatible forms for direct connection to the ALU. Reinterpretations of carry functions, as explained on the 181 data sheet are also applicable to and compatible with the look-ahead generator
