Single Item, Package of 1.

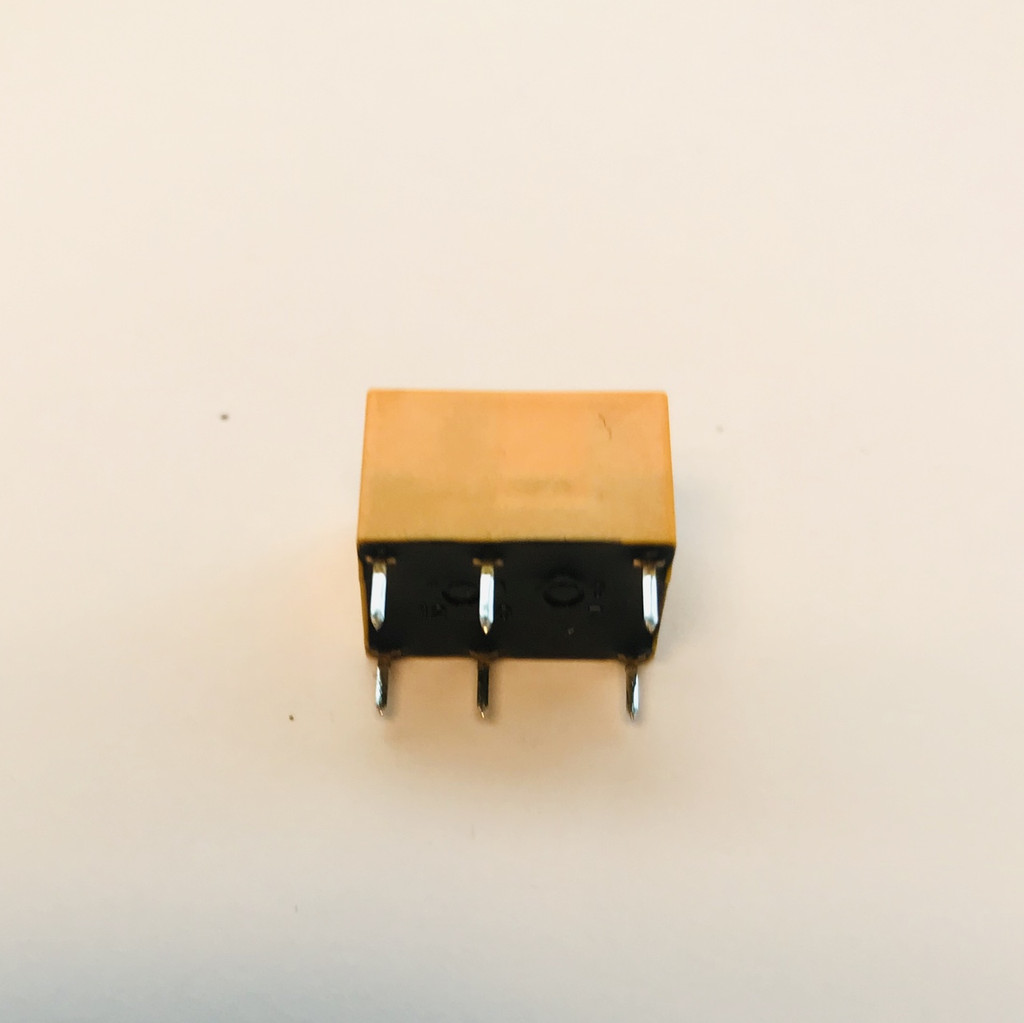

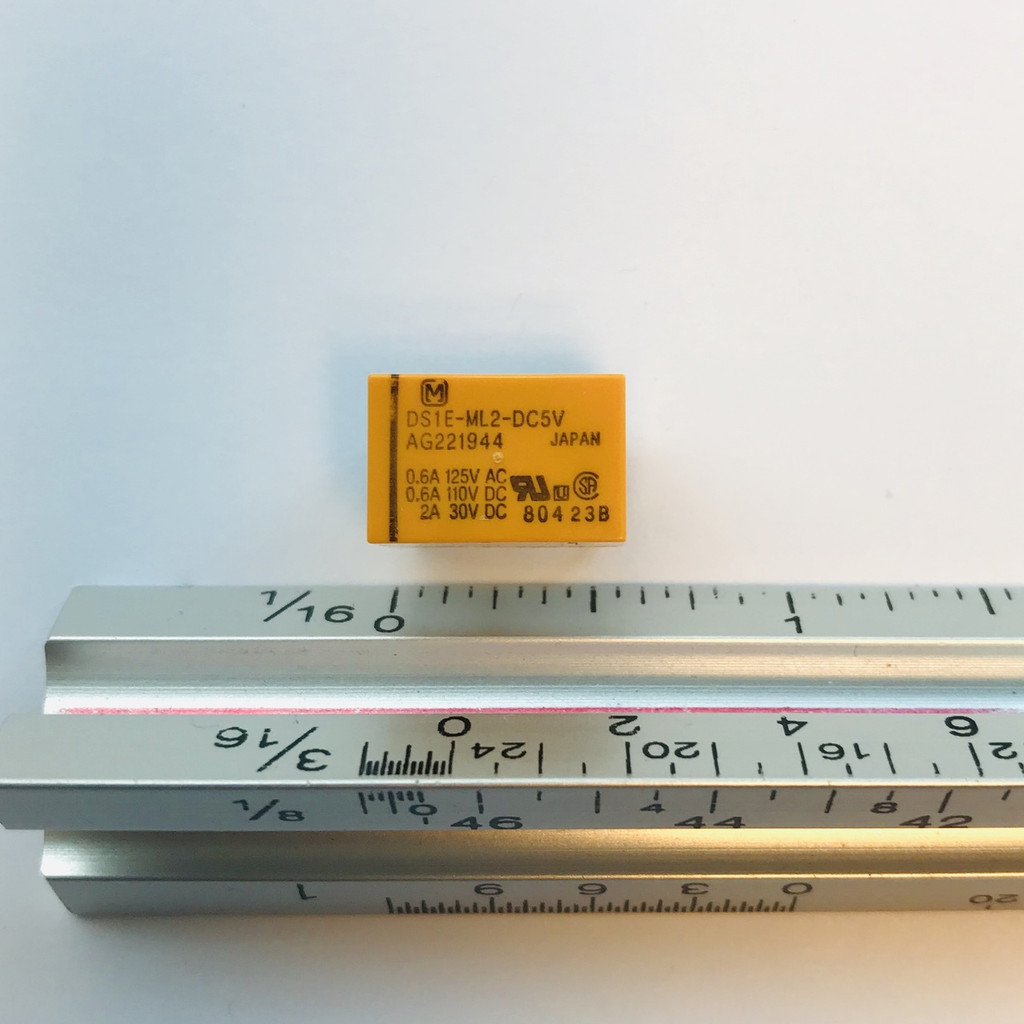

Panasonic SPDT-NO, NC (1 Form C) low profile 5VDC relay. Latching, dual coil type. Fully sealed plastic relay case. Has 6 pins for PCB mounting. DIL terminal array of pins on relay enables mounting in an IC socket.

Manufacturer: Panasonic
Manufacturer Part Number: DS1E-ML2-DC5V
Contact Form: 1 Form C (SPDT-NO, NC)
Coil Voltage: 5 VDC
Contact Rating: 2 A at 30 VDC
Maximum Switching Voltage: 130VAC, 220VDC
Maximum Switching Current: 3 A
Maximum Switching Power: 60 W, 125 VA (resistive load)
Coil Resistance: 69.4 Ω
Coil Current: 72 mA
Coil Type: Dual Coil Latching
Power Consumption: 360 mW
Contact Termination: Solder Pin
Number of Pins: 6
Contact Material: Silver (Ag) with Gold Plating
Mounting Style: Through Hole
Length: 14.9 mm
Width: 9.9 mm
Height: 9.8 mm
Operate (set) time: 10 ms max
Release (reset) time: 5 ms max
Operating Temperature: -40 ~ 70°C

Item ships from our warehouse in Phoenix, AZ
