Single Item, Package of 1.

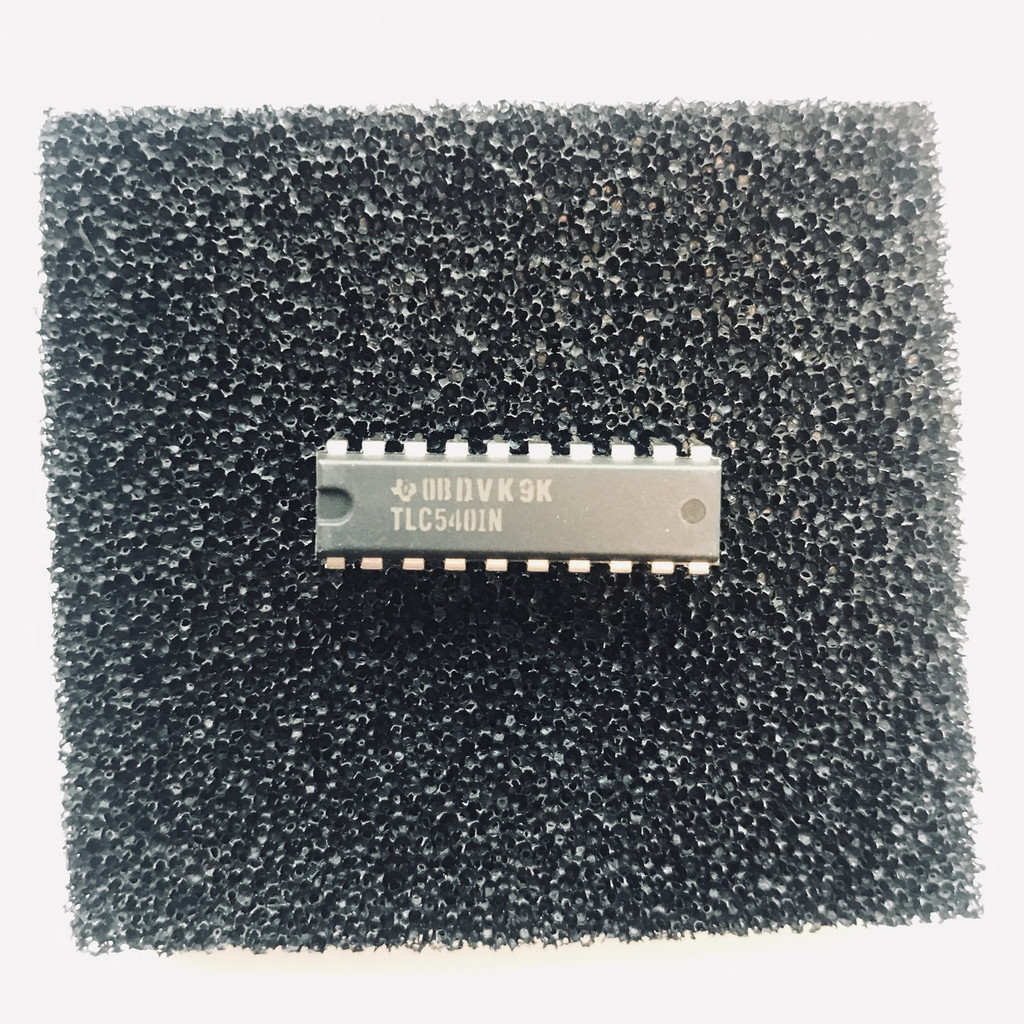

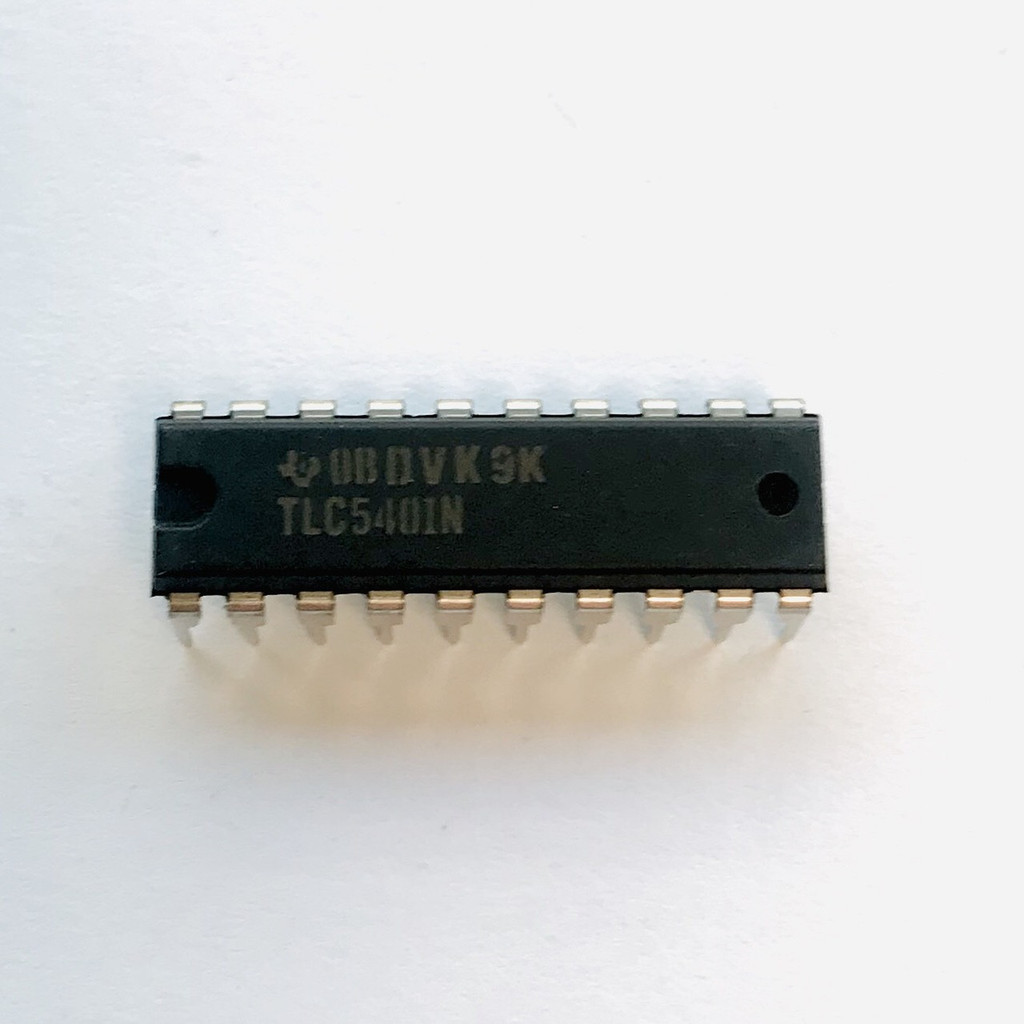

New old stock (NOS), unused, genuine part: Texas Instruments TLC540IN

The TLC540 is a CMOS A/D converter built around an 8-bit switched capacitor successive-approximation A/D converter. They are designed for serial interface to a microprocessor or peripheral via a 3-state output with up to four control inputs, including independent SYSTEM CLOCK, I/O CLOCK, chip select (CS), and ADDRESS INPUT. A 4-MHz system clock for the TLC540 with a design that includes simultaneous read/write operation allows high-speed data transfers and sample rates of up to 75,180 samples per second for the TLC540. In addition to the high-speed converter and versatile control logic, there is an on-chip 12-channel analog multiplexer that can be used to sample any one of 11 inputs or an internal self-test voltage, and a sample-and-hold that can operate automatically or under microprocessor control.

Manufacturer: Texas Instruments
Manufacturer Part Number: TLC540IN
Resolution: 8 bit
Sampling RateL 75 kS/s
Data Interface Type: Serial, SPI
Number of A/D Converters: 1
Architecture: SAR
Number of Inputs: 11
Number of Channels: 12 Channel
Package / Case: PDIP-20, Plastic
RoHS: NO
Packaging: Anti-Static
