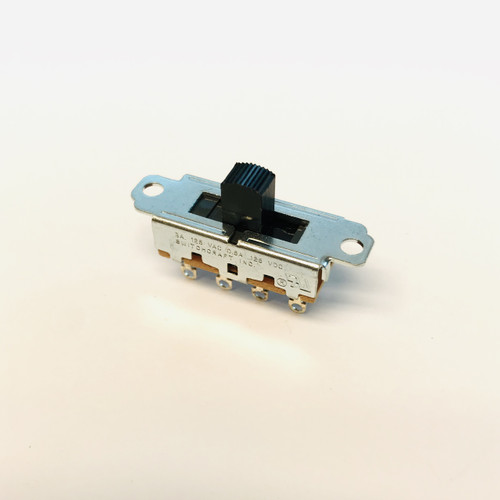

(PKG of 2) C&K Slide Switch, SPDT, 6A 125/250VAC

C&K
$1.95

Package of 2!

Prime S Series Slide Switches from C&K

Manufacturer: C&K
Manufacturer Part Number: S102-03-2-SS-03-Q
Switch Function: SPDT
AC Current Rating@ 125/250 VAC: 6A
DC Current Rating @ 125 VDC: 1 A
Actuator Height: 0.335”
Detent: NO
Mounting Style: Panel with mounting ears
Terminiations: Solder lug with hole
Housing: 6/6 nylon (UL94V-2), black
Actuator: 6/6 nylon (UL94V-2), black
Length: 1.374” L (34.93 mm)
Width: 0.530” (13.46 mm)
Height: 0.280” (7.11 mm) excluding actuator and terminals)
Panel Mounting Holes: 0.140” (3.56 mm) Dia.
Distance Between Holes: 1.125” (29.58 mm)
Packaging: Bulk

Read more
Current stock 57
Add to wishlist

Description

Package of 2!

Prime S Series Slide Switches from C&K

Manufacturer: C&K
Manufacturer Part Number: S102-03-2-SS-03-Q
Switch Function: SPDT
AC Current Rating@ 125/250 VAC: 6A
DC Current Rating @ 125 VDC: 1 A
Actuator Height: 0.335”
Detent: NO
Mounting Style: Panel with mounting ears
Terminiations: Solder lug with hole
Housing: 6/6 nylon (UL94V-2), black
Actuator: 6/6 nylon (UL94V-2), black
Length: 1.374” L (34.93 mm)
Width: 0.530” (13.46 mm)
Height: 0.280” (7.11 mm) excluding actuator and terminals)
Panel Mounting Holes: 0.140” (3.56 mm) Dia.
Distance Between Holes: 1.125” (29.58 mm)
Packaging: Bulk

Reviews (0)

Be the first to write a review

Additional info

SKU: R00129-CKS
Weight: 0.03 LBS
Width: 3.00
Height: 0.25
Depth: 4.00
